Single bobbin
One bobbin at 45° for supported printing. Units: millimetres.
Four-Sided Lace Bobbin
A thread-holding lace bobbin with a rounded-square grip, flat faces for moving pairs together, and a round winding shaft.
Files

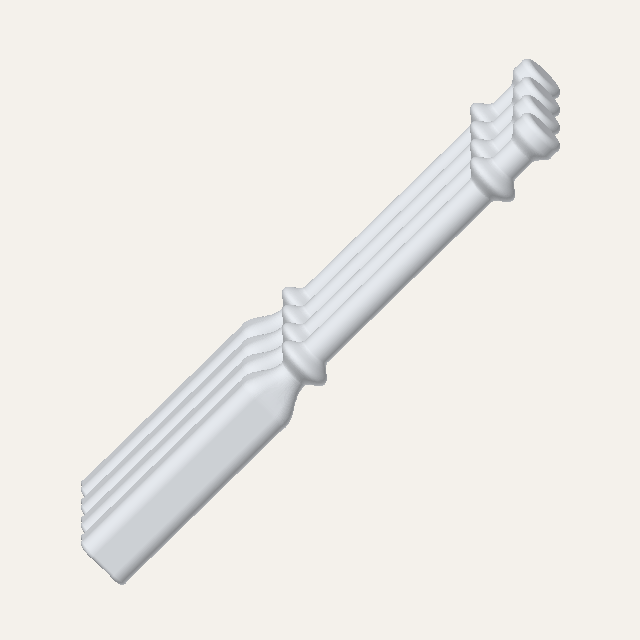

Four-bobbin ASA print plate
Bambu Studio project for a P1S with a 0.4 mm nozzle and Textured PEI plate. Open as a project to retain the settings.
About this project
The grip has four flat faces joined by rounded corners. Two bobbins can meet face to face when moved together, while the round collars remain clear of one another. A tapered neck connects the grip to the circular winding shaft, with rounded collars and a terminal hitch for the thread.
The flat butt provides a small pin-pushing surface. After removing supports, smooth any seam or contact marks that could catch fine thread, keeping the grip faces flat.
| Dimension | Size |
|---|---|
| Overall length | 120 mm |
| Grip across flats | 11.6 mm |
| Grip corner radius | 3.2 mm |
| Flat face on each side | 5.2 × 43.2 mm |
| Winding shaft diameter | 6 mm |
| Clear winding length | 45 mm |
| Collar diameter | 11 mm |
The Single bobbin download contains one bobbin at its 45° printing orientation. Import it in millimetres and generate supports before printing.
The Four-bobbin ASA print plate opens as a complete Bambu Studio project with four bobbins, material settings and shared tree-support settings. Keep the four parts grouped and print by layer so the support arrangement is preserved. Re-slice the plate after opening it, and map the filament to the ASA spool loaded in the printer.
Included ASA setup
| Setting | Value |
|---|---|
| Printer | Enclosed Bambu Lab P1S, 0.4 mm nozzle |
| Material and plate | Bambu ASA, Textured PEI |
| Nozzle and bed | 270°C / 95°C |
| Layer height | 0.16 mm; 0.20 mm first layer |
| Walls and infill | 5 walls; 100% infill |
| Supports | Organic trees from the build plate |
Let the parts cool before removal. Cut shared support branches into sections while supporting the nearby bobbin, then remove the remaining contact points without levering against the winding shaft.
