DeWalt DXV12P Hose Adapters
Two adapters connect a spiral-reinforced PVC extension hose between the original hose and rigid wand of a DeWalt DXV12P shop vacuum.
Files
About this project

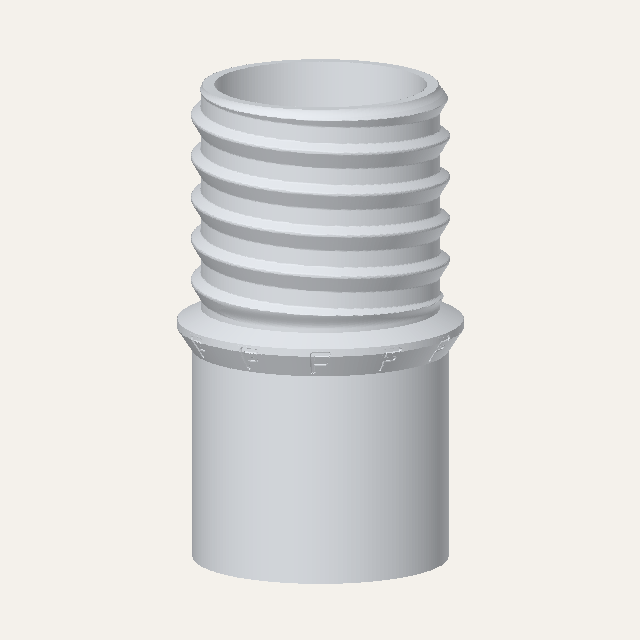

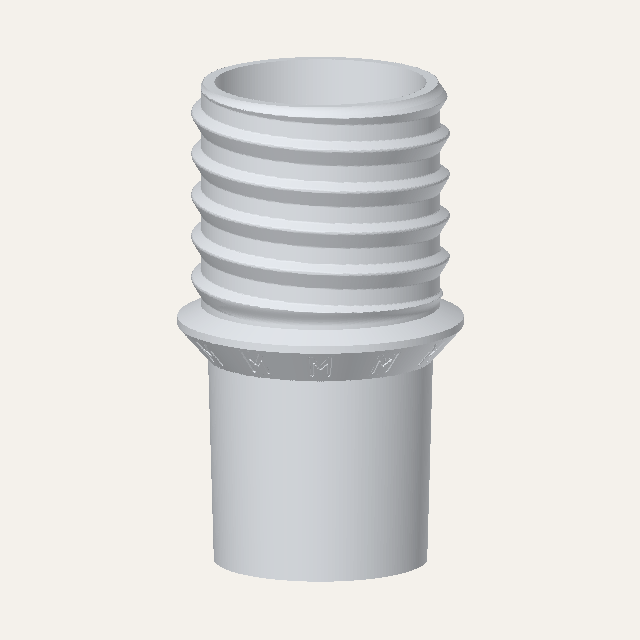

The F female socket receives the original DeWalt hose end. The M male plug slides into the rigid wand. Both adapters screw into the inside of the flexible PVC hose, placing the extension between the vacuum's original hose and its cleaning tools.
A continuous left-hand thread follows the hose's spiral reinforcement. Wide collars provide a grip for installation, and twelve recessed F or M markings around each collar identify the connection from different angles.
The adapters have been printed in ASA and their fit confirmed with this DeWalt DXV12P setup. They were sized for the measured hose and wand; compatibility with other nominal 2½-inch accessories or a different spiral hose is not established.
| Interface detail | Dimension |
|---|---|
| Hose thread crest / root diameter | 66.8 / 61.8 mm |
| Thread pitch and direction | 10.914 mm, left-hand |
| Threaded hose section | 58 mm on each adapter |
| Female socket depth | 55 mm |
| Male taper length | 53.58 mm |

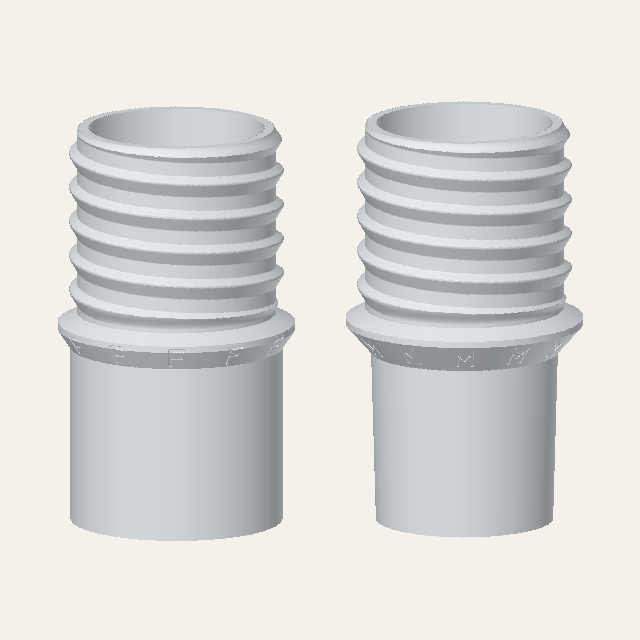

Choose an individual model for either fitting or the paired print layout for both. Import the individual STLs in millimetres at 100% scale.
